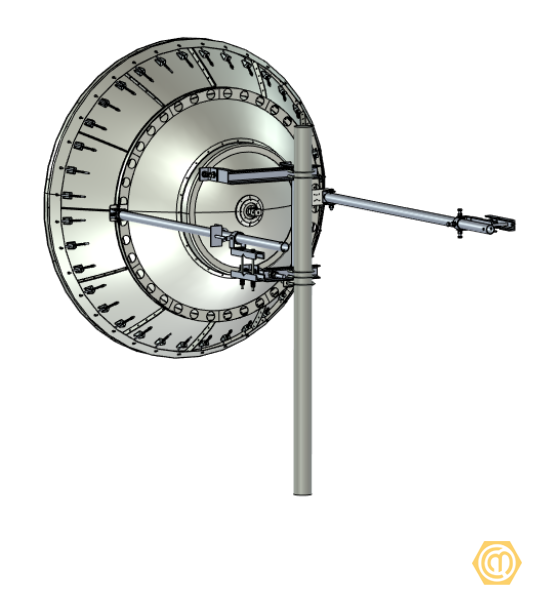

1.8m UHXP Dual-Polarized Microwave Parabolic Antenna
Ultra-high XPD performance microwave antenna

1.8m UHXP Dual-Polarized Microwave Parabolic Antenna

- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;

Product Details

Electrical performance:

Antenna Model

Antenna Size(m)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO







Low

Mid

Top











CMP183DC

1.8

3.6-4.2

33.8

34.8

35.3

3.1

40

1.15

60

45

CMP184DC

1.8

4.4-5.0

35.7

36.3

36.8

2.6

40

1.15

61

45

CMP186WDC

1.8

5.925-7.125

38.4

39.4

39.8

1.8

40

1.1

65

45

CMP187WDC

1.8

7.125-8.5

40.0

40.8

41.5

1.5

40

1.1

66

45

CMP1810WDC

1.8

10-11.7

43.0

43.7

44.3

1.1

40

1.1

71

45

CMP1813WDC

1.8

12.2-13.25

45.0

45.2

45.3

0.9

40

1.1

70

45

CMP1815DC

1.8

14.4-15.35

46.1

46.3

46.6

0.8

40

1.1

71

45


Mechanical performance:

Diameter of Mounting Pole



Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±5°

Fine Elevation Adjustment

Fine ±5°

Wind Velocity Operational

180km/h

Wind Velocity Survival

200km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃
