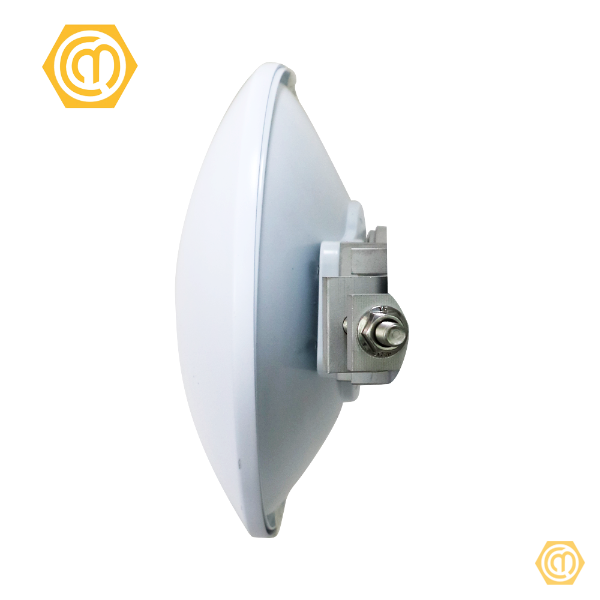

0.3m/1ft Class3 Dual-Polarized Antenna
Parabolic antenna

0.3m/1ft Class3 Dual-Polarized Antenna

Features:

  • Optimized F/B & side-lobe suppression minimizes interference
  • Quick connect waveguide allows rapid change of polarization and installation
  • Installs in minutes to reduce service calls and installation time
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-point (PtP) for backhaul or client premise equipment (CPE)
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Last-mile connection
Product Details

Electrical performance:

Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

5G24

0.3m/1ft

5.0-7.0

24

9

25

1.7

35

30

CMP0310WDA

0.3m/1ft

10.0-11.7

28.6

29.3

30.1

5.3

30

1.3

54

35

CMP0313WDA

0.3m/1ft

12.2-13.25

30.3

30.6

31.0

4.4

30

1.3

56

35

CMP0315DA

0.3m/1ft

14.4-15.35

31.9

32.2

32.5

4.0

30

1.3

57

35

CMP0318DA

0.3m/1ft

17.7-19.7

33.7

34.2

34.7

3.1

30

1.3

59

35

CMP0323DA

0.3m/1ft

21.2-23.6

35.3

3.8

36.2

2.6

30

1.3

61

35

CMP0326DA

0.3m/1ft

24.2-26.5

36.5

36.9

37.2

2.3

30

1.3

62

35

CMP0328DA

0.3m/1ft

27.5-29.5

37.6

37.9

38.2

2.0

30

1.3

63

35

CMP0332DA

0.3m/1ft

31.8-33.4

38.8

39.0

39.3

1.8

30

1.3

64

35

CMP0338DA

0.3m/1ft

37.0-40.0

40.1

40.5

40.8

1.5

30

1.3

66

35


Mechanical performance:

Diameter of Mounting Pole

Φ51~Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±15°

Fine Elevation Adjustment

Coarse ±25°  Fine ±15°

Wind Velocity Operational

180km/h

Wind Velocity Survival Rating

250km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃
