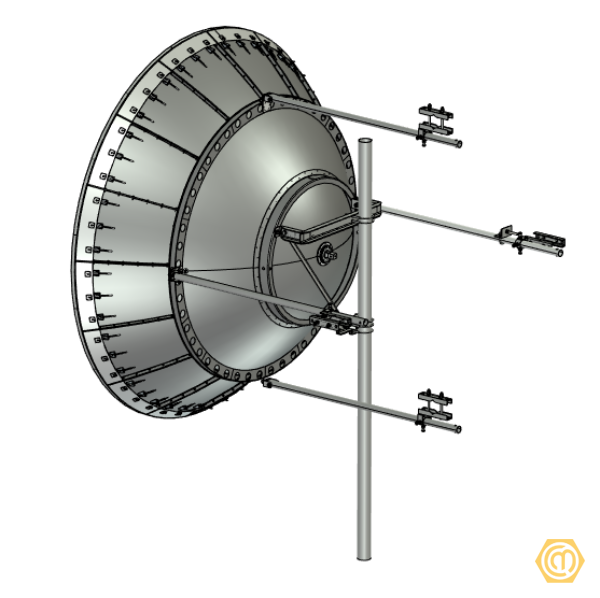

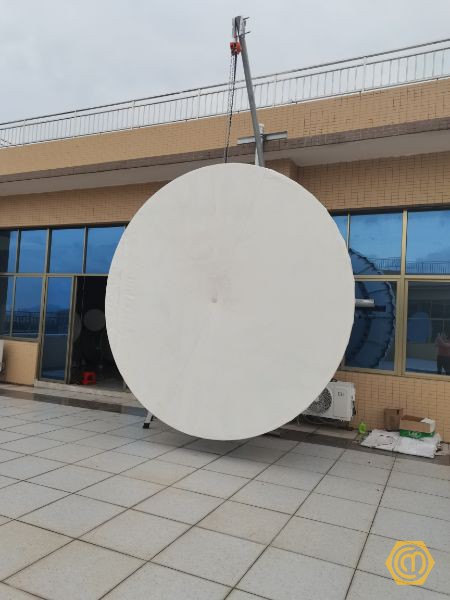

2.4m/8ft Class3 Dual-Polarized Antenna
- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised；
- High Performance ETSI Class 3 & US FCC 101 compliance parabolic antennas with exceptional front/back ratio – Excellent performance for a wide range of applications；

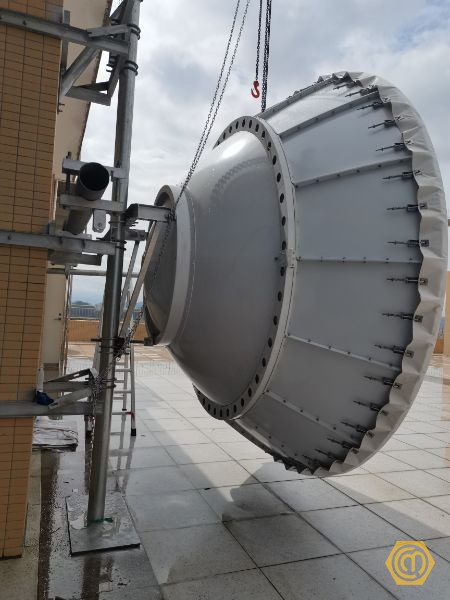

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality；
Electrical performance:
2.4m/8ft ultra high XPD dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP243DC | 2.4m/8ft | 3.6-4.2 | 36.1 | 37.3 | 38 | 2.4 | 40 | 1.15 | 62 | 45 |
CMP244DC | 2.4m/8ft | 4.4-5.0 | 38.0 | 38.8 | 39.3 | 2.0 | 40 | 1.15 | 63 | 45 |
CMP246WDC | 2.4m/8ft | 5.925-7.125 | 40.8 | 41.7 | 42.5 | 1.4 | 40 | 1.1 | 67 | 45 |
CMP247WDC | 2.4m/8ft | 7.125-8.5 | 42.5 | 43.3 | 44.0 | 1.1 | 40 | 1.1 | 69 | 45 |
CMP2410WDC | 2.4m/8ft | 10-11.7 | 45.5 | 46.1 | 46.8 | 0.8 | 40 | 1.1 | 71 | 45 |
CMP2413WDC | 2.4m/8ft | 12.2-13.25 | 47.5 | 47.7 | 47.9 | 0.7 | 40 | 1.1 | 72 | 45 |
CMP2415DC | 2.4m/8ft | 14.4-15.35 | 48.6 | 48.8 | 49.1 | 0.6 | 40 | 1.1 | 74 | 45 |
2.4m/8ft high XPD dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP243DB | 2.4m/8ft | 3.6-4.2 | 36.1 | 37.3 | 38 | 2.4 | 33 | 1.15 | 62 | 38 |
CMP244DB | 2.4m/8ft | 4.4-5.0 | 38.0 | 38.8 | 39.3 | 2.0 | 33 | 1.15 | 63 | 38 |
CMP246WDB | 2.4m/8ft | 5.925-7.125 | 40.8 | 41.7 | 42.5 | 1.4 | 33 | 1.1 | 67 | 38 |
CMP247WDB | 2.4m/8ft | 7.125-8.5 | 42.5 | 43.3 | 44.0 | 1.1 | 33 | 1.1 | 69 | 38 |
CMP2410WDB | 2.4m/8ft | 10-11.7 | 45.5 | 46.1 | 46.8 | 0.8 | 33 | 1.1 | 71 | 38 |
CMP2413WDB | 2.4m/8ft | 12.2-13.25 | 47.5 | 47.7 | 47.9 | 0.7 | 33 | 1.1 | 72 | 38 |
CMP2415DB | 2.4m/8ft | 14.4-15.35 | 48.6 | 48.8 | 49.1 | 0.6 | 33 | 1.1 | 74 | 38 |
2.4m/8ft standard dual-polarizedmicrowave parabolic antennaspecificati
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP243DA | 2.4m/8ft | 3.6-4.2 | 36.1 | 37.3 | 38 | 2.4 | 30 | 1.15 | 62 | 35 |
CMP244DA | 2.4m/8ft | 4.4-5.0 | 38.0 | 38.8 | 39.3 | 2.0 | 30 | 1.15 | 63 | 35 |
CMP246WDA | 2.4m/8ft | 5.925-7.125 | 40.8 | 41.7 | 42.5 | 1.4 | 30 | 1.1 | 67 | 35 |
CMP247WDA | 2.4m/8ft | 7.125-8.5 | 42.5 | 43.3 | 44.0 | 1.1 | 30 | 1.1 | 69 | 35 |
CMP2410WDA | 2.4m/8ft | 10-11.7 | 45.5 | 46.1 | 46.8 | 0.8 | 30 | 1.1 | 71 | 35 |
CMP2413WDA | 2.4m/8ft | 12.2-13.25 | 47.5 | 47.7 | 47.9 | 0.7 | 30 | 1.1 | 72 | 35 |
CMP2415DA | 2.4m/8ft | 14.4-15.35 | 48.6 | 48.8 | 49.1 | 0.6 | 30 | 1.1 | 74 | 35 |
Mechanical performance:
Diameter of Mounting Pole | Φ114 mm |
Fine Azimuth Adjustment | Coarse 360° Fine ±5° |
Fine Elevation Adjustment | Fine ±5° |
Wind Velocity Operational | 180km/h |
Wind Velocity Survival | 200km/h |
Ice-load | 25.4 mm |
Operational Temperature | -55~ +70℃ |
