3.0m/10ft Class3 Dual-Polarized Antenna

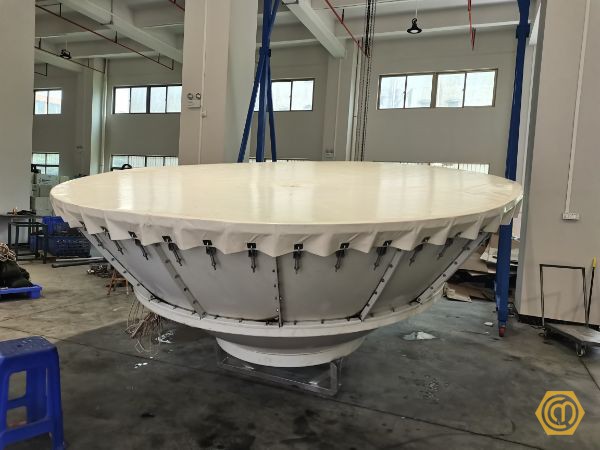

- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised；
- High Performance ETSI Class 3 and US FCC 101 compliance parabolic antennas with exceptional front/back ratio – Excellent performance for a wide range of applications；

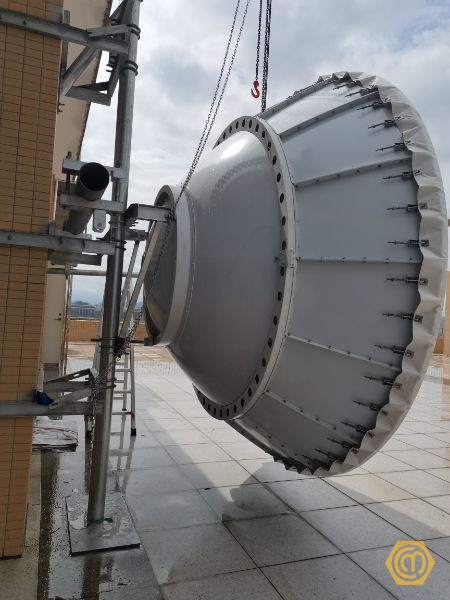

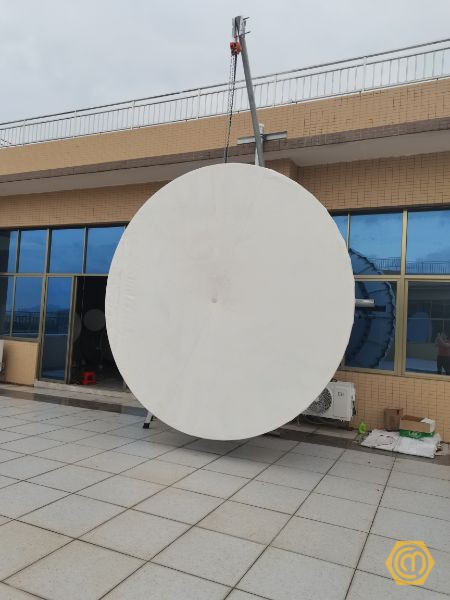

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality；
Electrical performance:
3.0m/10ft ultra high XPD performance dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP303DC | 3.0m/10ft | 3.6-4.2 | 38.3 | 38.9 | 39.5 | 1.9 | 40 | 1.15 | 64 | 45 |
CMP304DC | 3.0m/10ft | 4.4-5.0 | 40 | 40.6 | 41.1 | 1.5 | 40 | 1.15 | 65 | 45 |
CMP306WDC | 3.0m/10ft | 5.925-7.125 | 42.8 | 43.6 | 44.4 | 1.1 | 40 | 1.1 | 69 | 45 |
CMP307WDC | 3.0m/10ft | 7.125-8.5 | 44.4 | 45.2 | 46.0 | 0.9 | 40 | 1.1 | 71 | 45 |
CMP3010WDC | 3.0m/10ft | 10-11.7 | 47.4 | 48.1 | 48.7 | 0.7 | 40 | 1.1 | 73 | 45 |
CMP3013WDC | 3.0m/10ft | 12.2-13.25 | 49.4 | 49.6 | 49.8 | 0.6 | 40 | 1.1 | 75 | 45 |
3.0m/10ft high XPD performance dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP303DB | 3.0m/10ft | 3.6-4.2 | 38.3 | 38.9 | 39.5 | 1.9 | 33 | 1.15 | 64 | 38 |
CMP304DB | 3.0m/10ft | 4.4-5.0 | 40 | 40.6 | 41.1 | 1.5 | 33 | 1.15 | 65 | 38 |
CMP306WDB | 3.0m/10ft | 5.925-7.125 | 42.8 | 43.6 | 44.4 | 1.1 | 33 | 1.1 | 69 | 38 |
CMP307WDB | 3.0m/10ft | 7.125-8.5 | 44.4 | 45.2 | 46.0 | 0.9 | 33 | 1.1 | 71 | 38 |
CMP3010WDB | 3.0m/10ft | 10-11.7 | 47.4 | 48.1 | 48.7 | 0.7 | 33 | 1.1 | 73 | 38 |
CMP3013WDB | 3.0m/10ft | 12.2-13.25 | 49.4 | 49.6 | 49.8 | 0.6 | 33 | 1.1 | 75 | 38 |
3.0m/10ft standard performance dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP303DA | 3.0m/10ft | 3.6-4.2 | 38.3 | 38.9 | 39.5 | 1.9 | 30 | 1.15 | 64 | 35 |
CMP304DA | 3.0m/10ft | 4.4-5.0 | 40 | 40.6 | 41.1 | 1.5 | 30 | 1.15 | 65 | 35 |
CMP306WDA | 3.0m/10ft | 5.925-7.125 | 42.8 | 43.6 | 44.4 | 1.1 | 30 | 1.1 | 69 | 35 |
CMP307WDA | 3.0m/10ft | 7.125-8.5 | 44.4 | 45.2 | 46.0 | 0.9 | 30 | 1.1 | 71 | 35 |
CMP3010WDA | 3.0m/10ft | 10-11.7 | 47.4 | 48.1 | 48.7 | 0.7 | 30 | 1.1 | 73 | 35 |
CMP3013WDA | 3.0m/10ft | 12.2-13.25 | 49.4 | 49.6 | 49.8 | 0.6 | 30 | 1.1 | 75 | 35 |

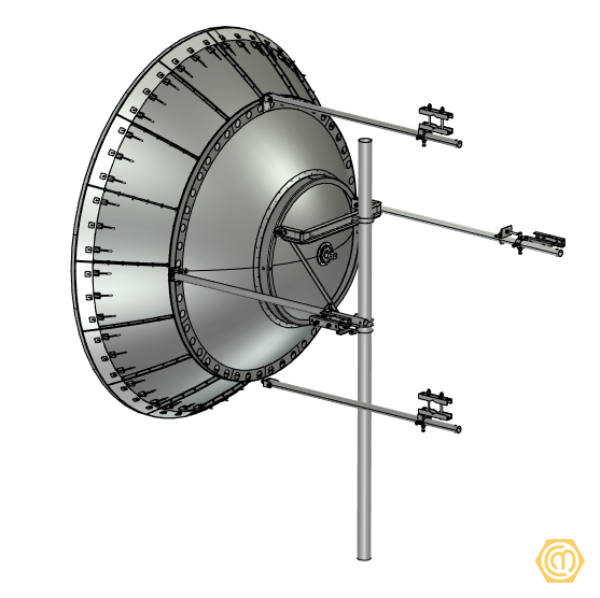

Mechanical performance:
Diameter of Mounting Pole | Φ114 mm |
Fine Azimuth Adjustment | Coarse 360° Fine ±5° |
Fine Elevation Adjustment | Fine ±5° |
Wind Velocity Operational | 180km/h |
Wind Velocity Survival | 200km/h |
Ice-load | 25.4 mm |
Operational Temperature | -55~ +70℃ |
