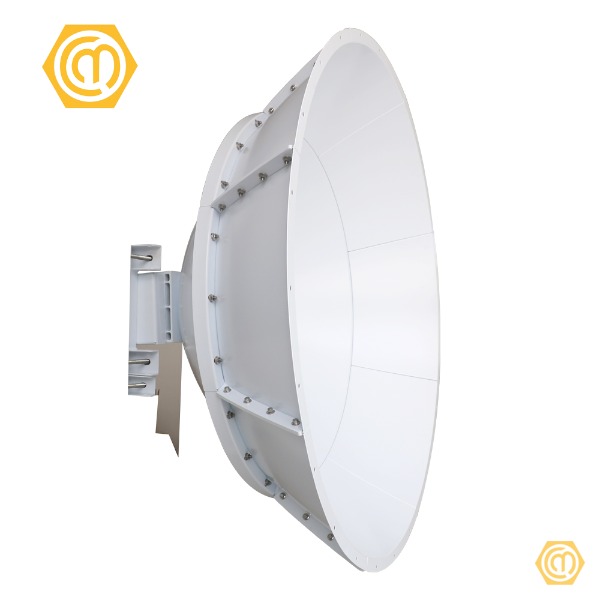

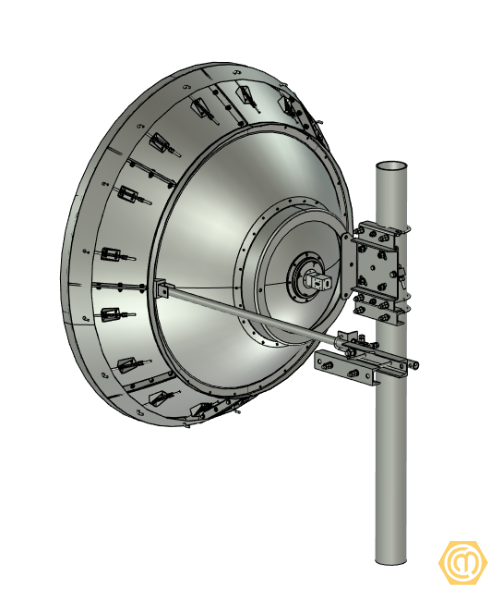

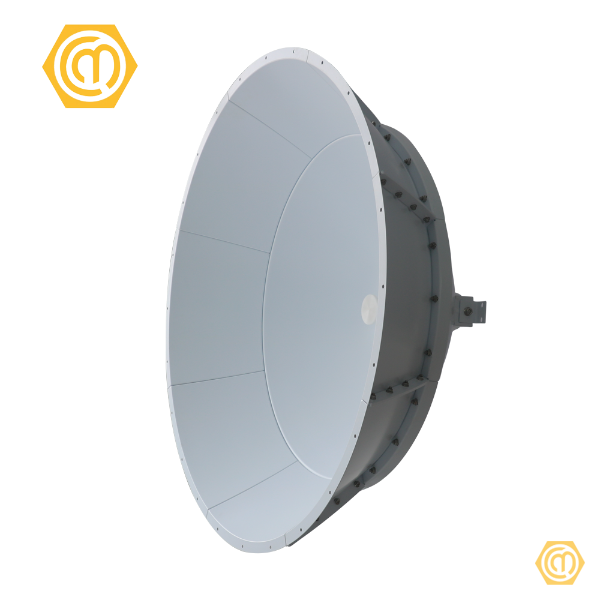

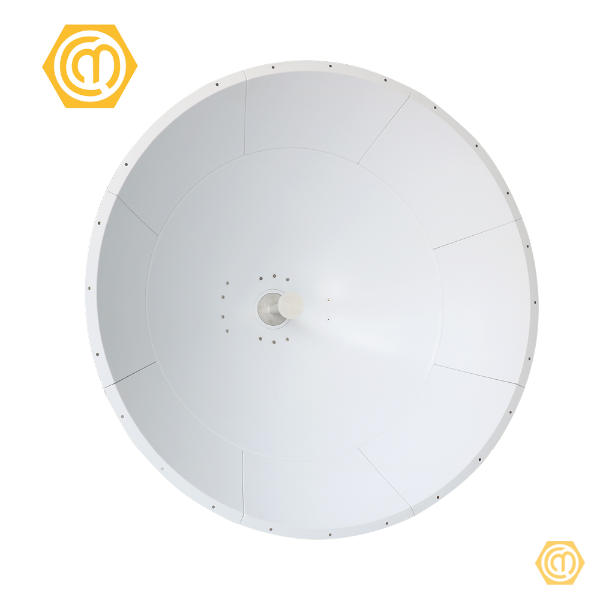

1.2m/4ft Class3 Dual-Polarized Antenna
- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised；
- High Performance ETSI Class 3 & US FCC 101 compliance parabolic antennas with exceptional front/back ratio – Excellent performance for a wide range of applications；
- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality；
Electrical performance:
1.2m/4ft ultra high XPD performance dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP124DC | 1.2m/4ft | 4.4-5.0 | 32.0 | 32.6 | 33.1 | 3.7 | 40 | 1.2 | 58 | 45 |
CMP126WDC | 1.2m/4ft | 5.925-7.125 | 34.9 | 35.7 | 36.5 | 2.7 | 40 | 1.15 | 61 | 45 |
CMP127WDC | 1.2m/4ft | 7.125-8.5 | 36.5 | 37.3 | 38.0 | 2.2 | 40 | 1.15 | 63 | 45 |
CMP1210WDC | 1.2m/4ft | 10-11.7 | 39.6 | 40.2 | 40.8 | 1.6 | 40 | 1.15 | 65 | 45 |
CMP1213WDC | 1.2m/4ft | 12.2-13.25 | 41.6 | 41.7 | 41.9 | 1.3 | 40 | 1.15 | 66 | 45 |
CMP1215DC | 1.2m/4ft | 14.4-15.35 | 42.6 | 42.9 | 43.2 | 1.1 | 40 | 1.15 | 66 | 45 |
1.2m/4ft high XPD performance dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP124DA | 1.2m/4ft | 4.4-5.0 | 32.0 | 32.6 | 33.1 | 3.7 | 30 | 1.2 | 58 | 35 |
CMP126WDA | 1.2m/4ft | 5.925-7.125 | 34.9 | 35.7 | 36.5 | 2.7 | 30 | 1.15 | 61 | 35 |
CMP127WDA | 1.2m/4ft | 7.125-8.5 | 36.5 | 37.3 | 38.0 | 2.2 | 30 | 1.15 | 63 | 35 |
CMP1210WDA | 1.2m/4ft | 10-11.7 | 39.6 | 40.2 | 40.8 | 1.6 | 30 | 1.15 | 65 | 35 |
CMP1213WDA | 1.2m/4ft | 12.2-13.25 | 41.6 | 41.7 | 41.9 | 1.3 | 30 | 1.15 | 66 | 35 |
CMP1215DA | 1.2m/4ft | 14.4-15.35 | 42.6 | 42.9 | 43.2 | 1.1 | 30 | 1.15 | 66 | 35 |
1.2m/4ft standard performance dual-polarized microwave parabolic antenna specification
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP124DA | 1.2m/4ft | 4.4-5.0 | 32.0 | 32.6 | 33.1 | 3.7 | 30 | 1.2 | 58 | 35 |
CMP126WDA | 1.2m/4ft | 5.925-7.125 | 34.9 | 35.7 | 36.5 | 2.7 | 30 | 1.15 | 61 | 35 |
CMP127WDA | 1.2m/4ft | 7.125-8.5 | 36.5 | 37.3 | 38.0 | 2.2 | 30 | 1.15 | 63 | 35 |
CMP1210WDA | 1.2m/4ft | 10-11.7 | 39.6 | 40.2 | 40.8 | 1.6 | 30 | 1.15 | 65 | 35 |
CMP1213WDA | 1.2m/4ft | 12.2-13.25 | 41.6 | 41.7 | 41.9 | 1.3 | 30 | 1.15 | 66 | 35 |
CMP1215DA | 1.2m/4ft | 14.4-15.35 | 42.6 | 42.9 | 43.2 | 1.1 | 30 | 1.15 | 66 | 35 |
Mechanical performance:
Diameter of Mounting Pole | Φ114 mm |
Fine Azimuth Adjustment | Coarse 360° Fine ±15° |
Fine Elevation Adjustment | Fine ±10° |
Wind Velocity Operational | 180km/h |
Wind Velocity Survival | 200km/h |
Ice-load | 25.4 mm |
Operational Temperature | -55~ +70℃ |
