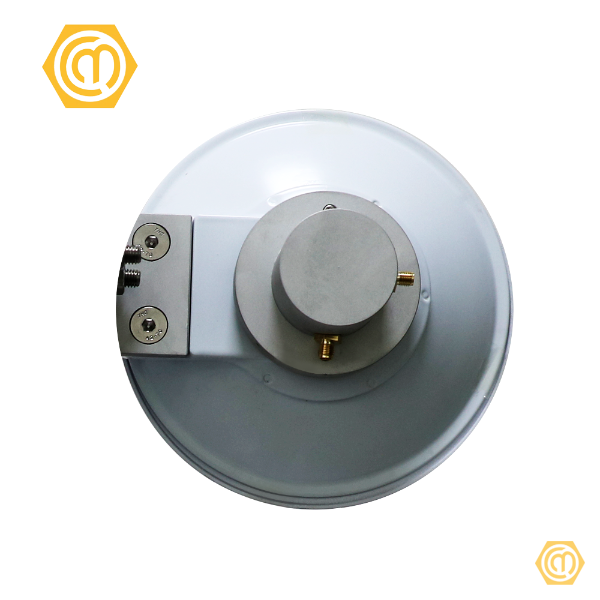

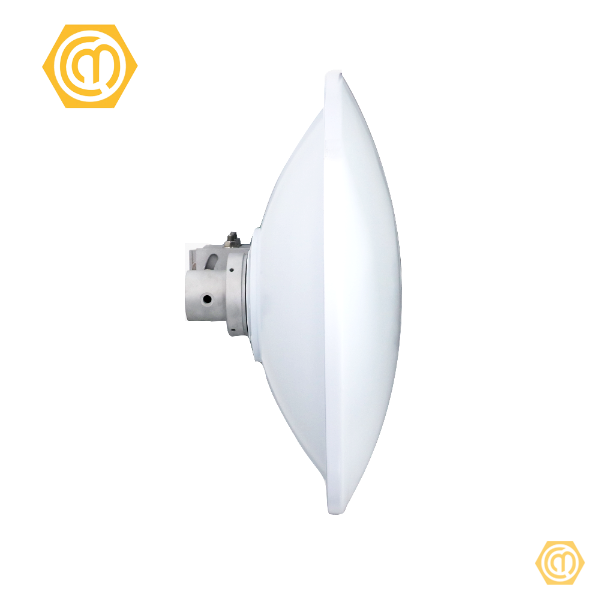

0.2m/0.7ft Dual-Polarized Antenna
Features：
- Optimized F/B & side-lobe suppression minimizes interference
- Quick connect waveguide allows rapid change of polarization and installation
- Installs in minutes to reduce service calls and installation time
- Integrated handle / hoisting hook for added safety and convenient installation

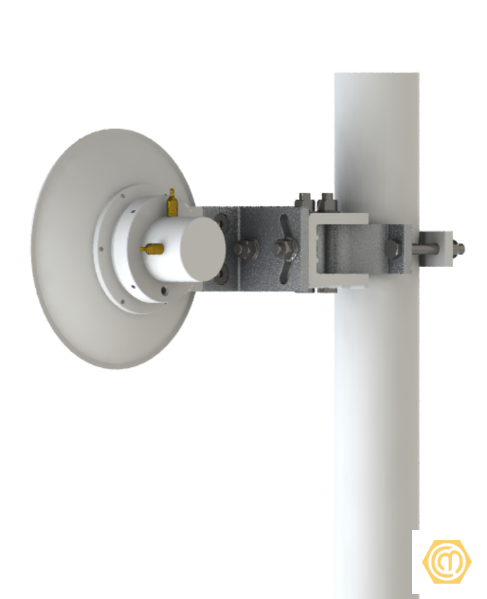

- Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths
Applications：
- Wireless MIMO LAN systems & IEEE 802.11n applications
- Point-to-point (PtP) for backhaul or client premise equipment (CPE)
- High-density deployments requiring frequency reuse to achieve high capacity and data rates
- Last-mile connection
Electrical performance:
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
CMP0213DA | 0.2m/0.7ft | 12.2-13.25 | 26.2 | 26.6 | 26.9 | 7.3 | 30 | 1.3 | 52 | 35 |
CMP0215DA | 0.2m/0.7ft | 14.4-15.35 | 27.4 | 27.8 | 28.2 | 6.5 | 30 | 1.3 | 53 | 35 |
CMP0218DA | 0.2m/0.7ft | 17.7-19.7 | 29.5 | 29.9 | 30.3 | 5.1 | 30 | 1.3 | 56 | 35 |
CMP0223DA | 0.2m/0.7ft | 21.2-23.6 | 31.0 | 31.5 | 32.0 | 4.3 | 30 | 1.3 | 57 | 35 |
CMP0226DA | 0.2m/0.7ft | 24.2-26.5 | 32.2 | 32.6 | 33.0 | 3.8 | 30 | 1.3 | 58 | 35 |
CMP0228DA | 0.2m/0.7ft | 27.5-29.5 | 33.3 | 33.6 | 33.9 | 3.4 | 30 | 1.3 | 59 | 35 |
CMP0232DA | 0.2m/0.7ft | 31.8-33.4 | 34.6 | 34.8 | 35.0 | 3.0 | 30 | 1.3 | 60 | 35 |
CMP0238DA | 0.2m/0.7ft | 37.0-40.0 | 35.9 | 36.2 | 36.5 | 2.5 | 30 | 1.3 | 61 | 35 |
Mechanical performance:

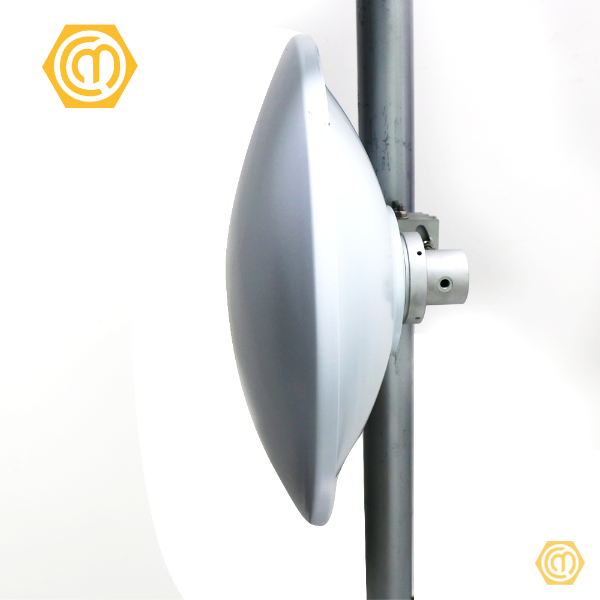

Diameter of Mounting Pole | Φ51~Φ114 mm |
Fine Azimuth Adjustment | Coarse 360° Fine ±15° |
Fine Elevation Adjustment | Coarse ±25° Fine ±15° |
Wind Velocity Operational | 180km/h |
Wind Velocity Survival Rating | 250km/h |
Ice-load | 25.4 mm |
Operational Temperature | -55~ +70℃ |
